Create Metformin, Other Drugs at Home with Microlab FTVC (Open source revolution in medicine)

#1

The MicroLab is not super-complicated as far as machines go.

It stirs.
It pumps hot or cold fluid to maintain a temperature.
It pours liquids through an array of peristaltic pumps.
There’s a small computer that controls those functions.

The real complexity comes when you start to consider all the edge cases of actually doing chemistry in it.

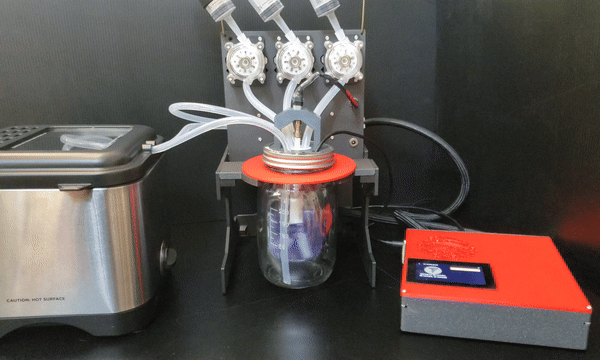

microlab-stirring-1-1

From the very first prototype, the MicroLab was able to perform chemical reactions. You can also perform chemical reactions by combining two substances in a jar and shaking them around. We know we can do chemistry. The questions we wanted to answer this release were:

“What chemistry can we reliably do?”

and

“How can we expand those possibilities?”

A lot more questions fall out of those two.

  • What solvents can the reactor handle?
  • How hot can the Reactor Core get without having problems?
  • What is the range of temperatures supported by the heat source and the ice bath?


Until then, remember that we have more power than we often think we do.

The MicroLab belongs to all humanity – as all knowledge should. We believe version 1.0 makes a wide range of small-molecule organic chemistry available to most people who can spare a few hundred dollars and turn a few screws. As a blue superhero from back when the US briefly cared about the environment used to say:

“The Power is Yours!”

Keep each other healthy. Keep each other safe.

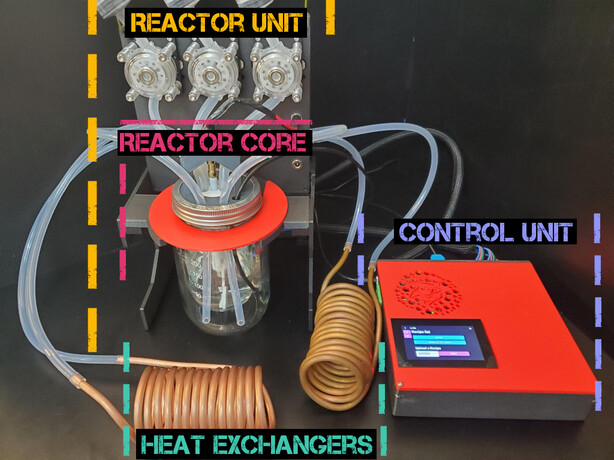

image1400×781 277 KB

Here’s the source code for Metformin

    {
      "title": "Metformin_updated",
      "steps": [{"message":"Add 5.20 g 2-cyanoguanidine to the reaction vessel","baseTask":"humanTask","parameters":{},"done":false,"options":[{"text":"Done","next":1}],"details":"","icon":"human_task","tasks":[]},{"message":"Add 150 mL 2-propanol to the reaction vessel","baseTask":"humanTask","done":false,"icon":"dispensing","options":[{"text":"Done","next":2}],"tasks":[]},{"message":"Add 25 mL methanol to the reaction vessel","baseTask":"humanTask","done":false,"icon":"dispensing","options":[{"text":"Done","next":3}],"tasks":[]},{"message":"Add 6.06 g dimethylamine HCl to the reaction vessel","baseTask":"humanTask","done":false,"icon":"human_task","options":[{"text":"Start stirring","next":4}],"tasks":[]},{"message":"The reaction is now being stirred at 40 °C for 15 minutes.","baseTask":"stir","parameters":{"time":900},"done":false,"options":[{"text":"","next":5}],"icon":"stirring","andMaintainTemp":"maintainHeat","andMaintainTempTemp":"40","next":5,"tasks":[{"baseTask":"maintainHeat","parameters":{"time":900,"temp":"40","tolerance":1}}]},{"message":"The reaction is now being stirred at 70 °C for 24 hours","baseTask":"stir","parameters":{"time":86400},"done":false,"icon":"stirring","andMaintainTemp":"maintainHeat","andMaintainTempTemp":"70","next":6,"tasks":[{"baseTask":"maintainHeat","parameters":{"time":86400,"temp":"70","tolerance":1}}]},{"message":"Evaporate the solvents down to approximately 35 mL. This should give a white slurry.","baseTask":"humanTask","done":false,"icon":"human_task","options":[{"text":"Done","next":7}],"tasks":[]},{"message":"Filter off the liquid. Pour 50 mL ice-cold 2-propanol through the compound that's on the filter, to wash it.","baseTask":"humanTask","done":false,"options":[{"text":"Done","next":8}],"icon":"filter","tasks":[]},{"message":"Collect the compound, and dry away the 2-propanol. For example by putting it in a glass and waiting 24 h.","baseTask":"humanTask","done":false,"icon":"dry","options":[{"text":"Done","next":9}],"tasks":[]},{"message":"Slowly add a minimal amount of methanol, until the compound is dissolved. Put the solution in the freezer and wait until crystals form in the liquid (2-24 h).","baseTask":"humanTask","done":false,"options":[{"text":"Done","next":10}],"icon":"crystalisation","tasks":[]},{"message":"Remove the liquid through filtration.","baseTask":"humanTask","done":false,"options":[{"text":"Done","next":11}],"icon":"filter","tasks":[]},{"message":"Collect the crystals, and dry away the methanol.","baseTask":"humanTask","done":false,"icon":"dry","options":[{"text":"Done","next":12}],"tasks":[]},{"message":"Congratulations! You have made Metformin HCl.","baseTask":"humanTask","done":true,"icon":"reaction_complete","tasks":[]}]
    }

A few other drugs source codes/recipes are available at: https://wiki.fourthievesvinegar.org/wiki/index.php?title=MicroLab_Recipes
